Diagram 27/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

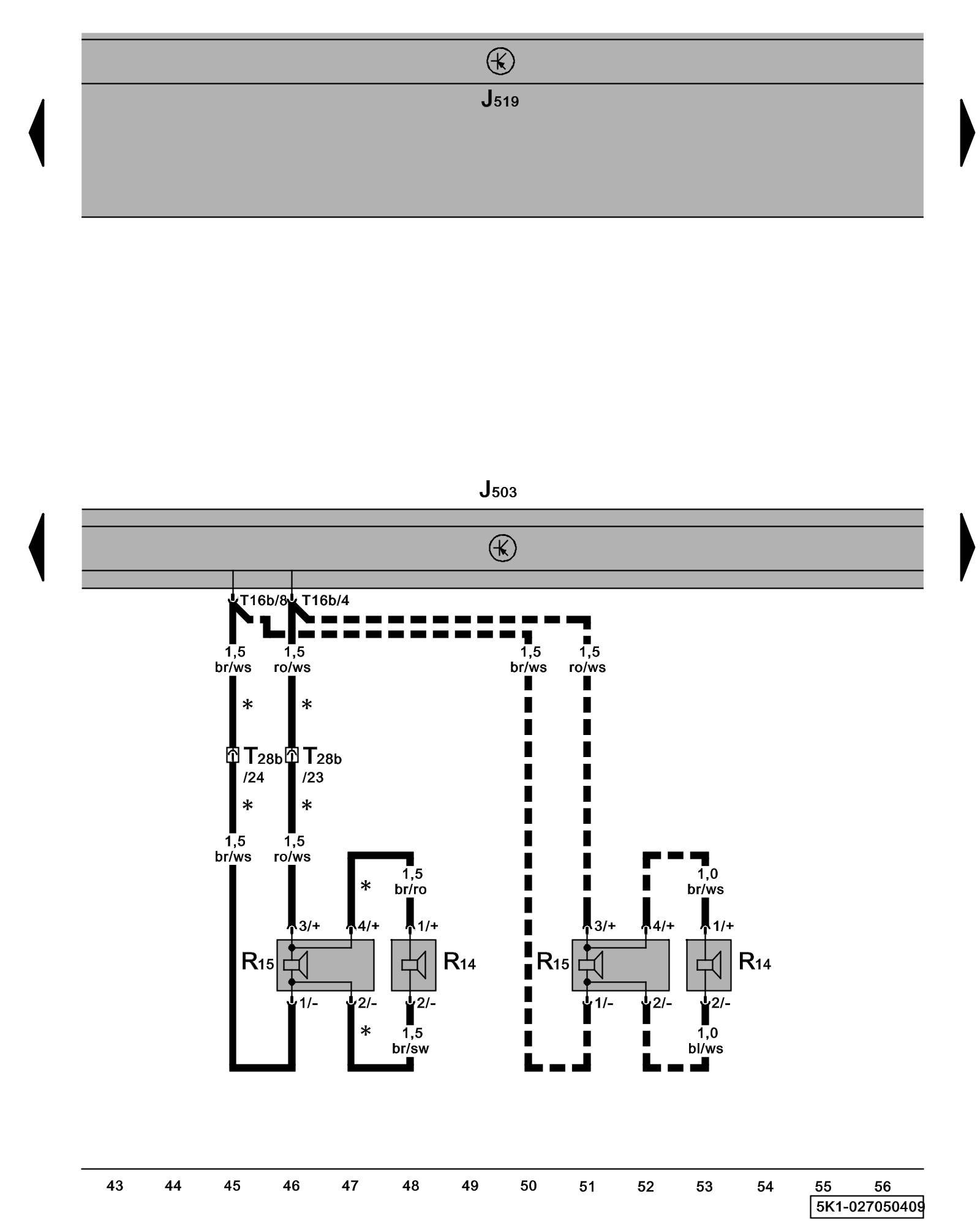

Radio/Navigation Display Control Module, Left Rear Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module
Locations

J519 - Vehicle Electrical System Control Module Control modules in front part of vehicle - Overview of Control Modules

R - Radio
Locations

R14 - Left Rear Treble Speaker
Locations

R15 - Left Rear Bass Speaker
Locations

T16b - 16-Pin Connector

T28b - 28-Pin Connector, connector station B-pillar, left Overview of connector stations and connectors

* - Only 4-door models with rear speaker

--- - Only 2-door models with rear speaker

Previous Diagram 27/4 (Tracks 29-42)

Next Diagram 27/6 (Tracks 57-70)
