Central Locking -SAFE- Indicator Lamp (K133)

Central Locking -SAFE- Indicator Lamp (K133)

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the driver side door trim panel..

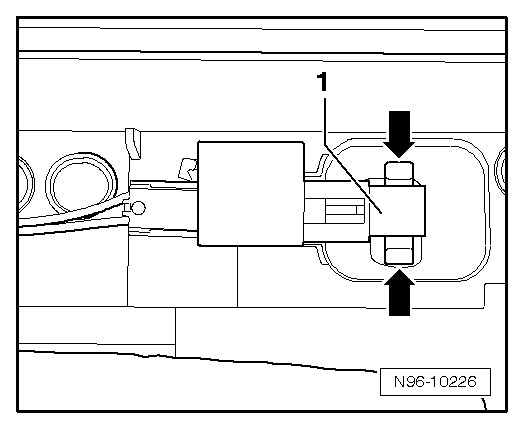

- Unclip Central Locking -SAFE- Indicator Lamp - 1 - from door trim by pressing retaining tabs - arrows - together.

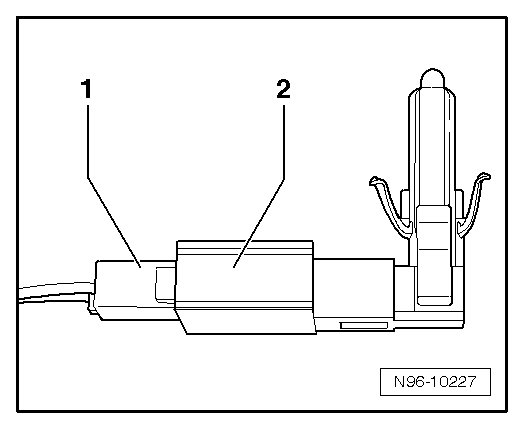

- Disconnect harness connector - 1 - of Central Locking -SAFE- Indicator Lamp - 2 -.






Installation

Install in reverse order of removal, noting the following:

• Make sure the Central Locking -SAFE- Indicator Lamp engages in the door trim securely.
