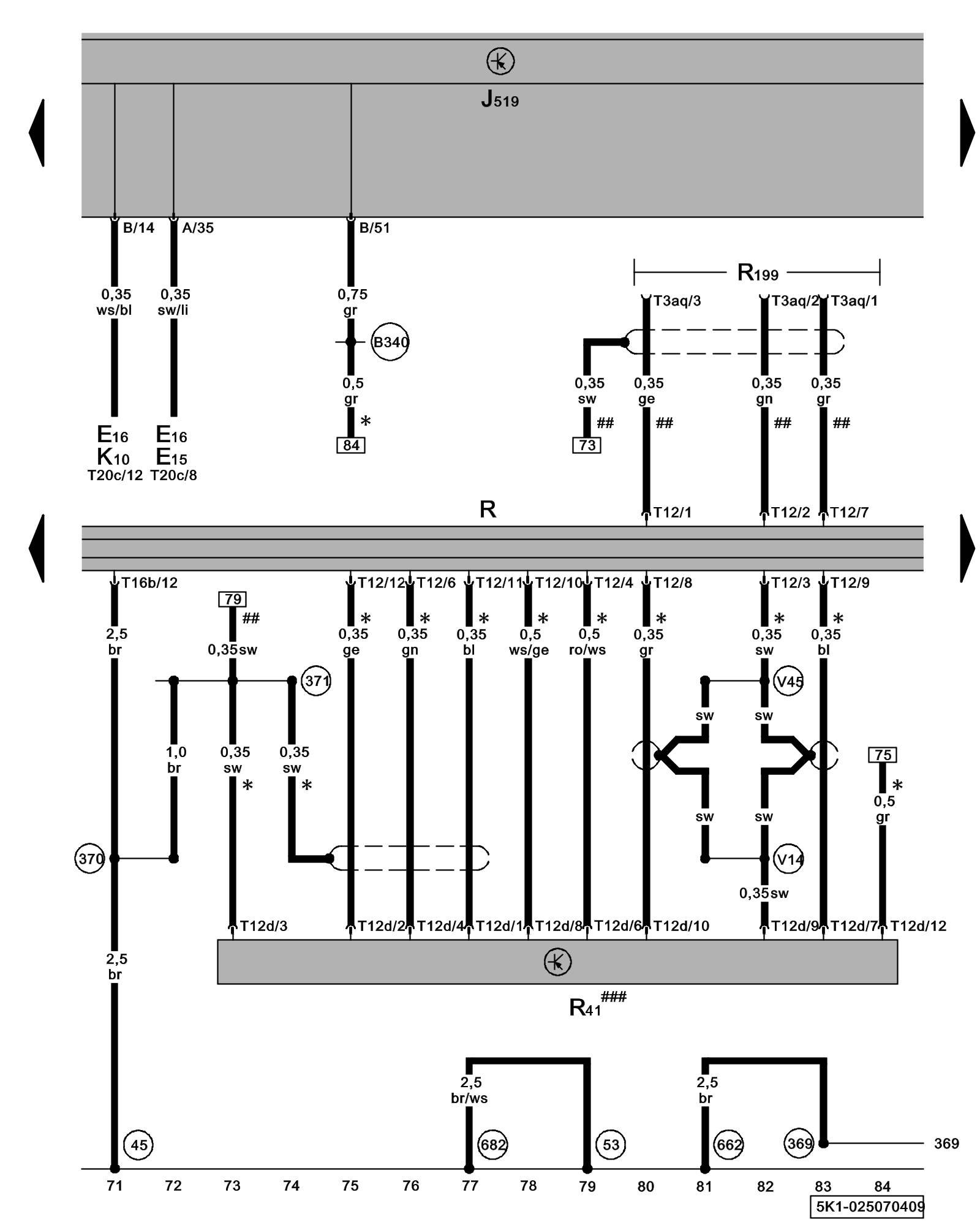

Diagram 25/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, CD Changer, External Audio Source Connector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E15 - Rear Window Defogger Switch

E16 - Heater/Heat Output Switch

J519 - Vehicle Electrical System Control Module Control modules in front part of vehicle - Overview of Control Modules

K10 - Rear Window Defogger Indicator Lamp

R - Radio
Locations

R41 - CD Changer
Locations

R199 - External Audio Source Connector
Locations

T3aq - 3-Pin Connector, in glove compartment

T12 - 12-Pin Connector

T12d - 12-Pin Connector

T16b - 16-Pin Connector

T20c - 20-Pin Connector

(45) - Ground Connection (behind instrument panel, center)

(53) - Ground Connection (in rear lid, right) Overview Of Ground Connections in Luggage Compartment

(369) - Ground Connection 4 (in main wiring harness)

(370) - Ground Connection 5 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(662) - Ground Connection (on left rear side panel)

(682) - Ground Connection 2 (in right rear side panel) Overview Of Ground Connections in Luggage Compartment

(B340) - Connection 1 (58d) (in main wiring harness)

(V14) - Connection (shielding) (in CD-changer wiring harness)

(V45) - Connection 2 (shielding)(in CD changer wiring harness)

* - Only models with CD changer/ CD changer preparation

## - Only external audio connector in glove compartment

### - Components not available on system preparation
