Turbocharger Vacuum Diaphragm

Turbocharger Vacuum Diaphragm

Removing

- Remove the turbocharger. Refer to => [ Turbocharger ] Turbocharger.






- Remove the clip form the vacuum diaphragm linkage

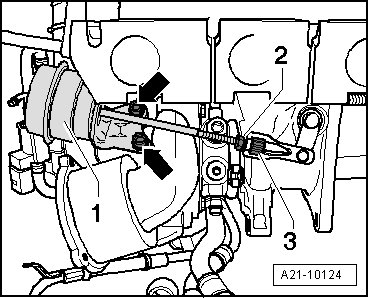

- Remove the vacuum diaphragm bolts - arrows - and remove the vacuum diaphragm - 1 - from the turbocharger.






Installing

Install in the reverse order of removal. Note the following:

Tightening Specifications
