Front Air Distribution Door Motor (V426) and Position Sensor (G642)

Front Air Distribution Door Motor (V426) and Position Sensor (G642)

Special tools, testers and auxiliary items required

• Vehicle Diagnostic Tester or newer model.

Removing

- Turn off all electric consumers.

- Switch off the ignition.

- Remove the key.

- Remove the instrument panel.








- Disconnect the connector from the front air distribution door motor.

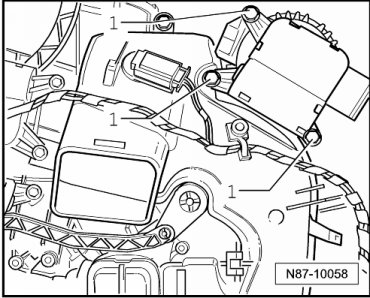

- Remove the screws - 1 - and then remove the front air distribution door motor.

Installing

Install in reverse order of removal.

- Make sure the door works correctly after installing the front air distribution door motor. Initiate the "basic setting" using the vehicle diagnostic tester.
