Front Door Lock

Door Lock

• Removing and installing the door lock is described. Removing and installing the left door lock is identical.

• It is not necessary to remove the subframe on a 2-door vehicle. It is only necessary to remove the cover.

Removing






- Remove front door trim..

2-door Vehicles

- On a 2-door vehicle, remove just the cover. Refer to => [ Cover, 2-Door Vehicle ] Cover, 2-Door Vehicle.

4-door Vehicles

- On a 4-door vehicle, remove the subframe. Refer to => [ Subframe ] Subframe.

All Vehicles

- Remove the lock cylinder.

- Remove the bolts - 4 -.

- Loosen the cable - 3 - on the door lock bracket.

- Remove the lock - 1 - from the door - 2 -.

Installation

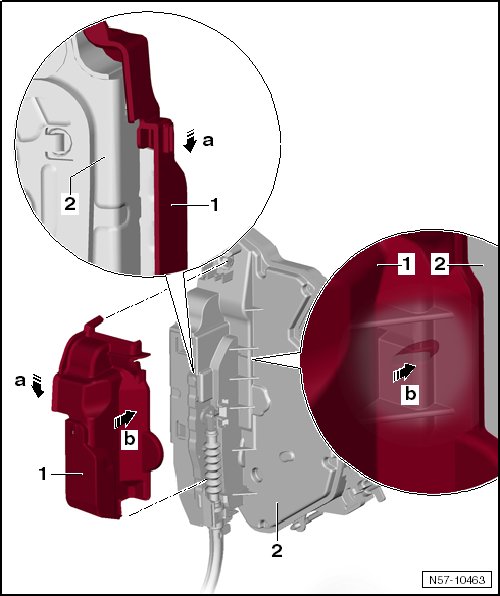

• Make sure to install the cover before installing the door lock.

- Push the cover - 1 - onto the guide - 2 - - arrow a -.

- Lock the cover - 1 - into the center of the door lock - 2 - - arrow b -.

Install in reverse order of removal.

Bolt tightening specification 20 Nm

• Then a function test must be performed because the lock will not open if the release cable is not adjusted and secured correctly.
