Removal and Replacement

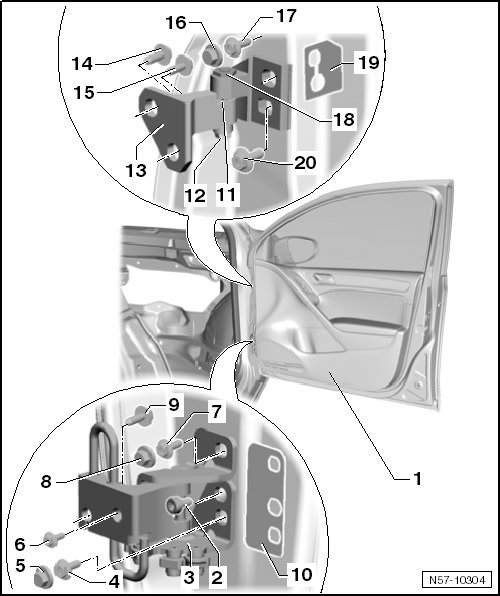

Door Hinge Overview

• The illustration shows a right door hinge. The left door hinge is identical.

• Always replace the door hinge bolts after loosening them.

• Hinges are no longer manufactured as separated parts.

• Lubricate the new door hinge if the old one was replaced.






1 Door

• Removing and installing, refer to => [ Door ] Front Door.

• Adjusting, refer to => [ Door, Adjusting ] Adjustments.

2 Guide Bolt

• Tightening specification: 10 Nm

3 Door Hinge with Door Arrester

• Lubricate if the hinge is replaced, refer to => [ New Door Hinges, Lubricating ] Procedures.

4 Socket Head Bolt

• Tightening specification: 38 Nm

• Always replace bolts after loosening them.

5 Cover

6 Socket Head Bolt

• Tightening specification: 50 Nm

• Installed from the inside of the vehicle.

• Remove the lower A-pillar trim..

• Always replace bolts after loosening them.

7 Socket Head Bolt

• Tightening specification: 38 Nm

• Always replace bolts after loosening them.

8 Cover

9 Socket Head Bolt

• Tightening specification: 50 Nm

• Always replace bolts after loosening them.

10 Lower Spacer Plate

11 Adjustment Ring

• Provides the eccentric pin adjustment range.

12 Bolt

• Tightening specification: 28 Nm

• For the eccentric bolts

13 Door Hinge

• The door hinge is not separated.

• Lubricate if the hinge is replaced, refer to => [ New Door Hinges, Lubricating ] Procedures.

14 Socket Head Bolt

• Tightening specification: 50 Nm

• Always replace bolts after loosening them.

15 Socket Head Bolt

• Tightening specification: 50 Nm

• Always replace bolts after loosening them.

16 Cover

17 Socket Head Bolt

• Tightening specification: 38 Nm

• Always replace bolts after loosening them.

18 Eccentric Bolts

• The eccentric bolts are for adjusting the gap.

19 Upper Spacer Plate

20 Guide Bolt

• Tightening specification: 10 Nm
