Buttons in Center Console Storage Compartment

Buttons in Center Console Storage Compartment

• The removing and installing of all buttons in the center console storage compartment is identical and is described for just one switch.

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

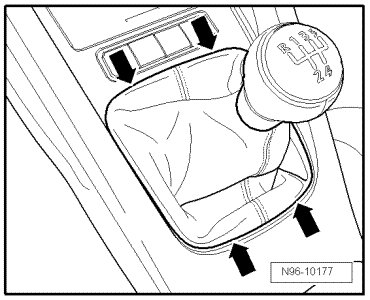

- Carefully pry off shift boot from center console - arrows -.

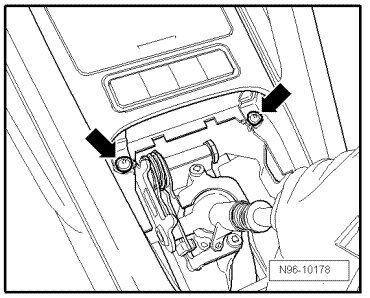

- Remove screws - arrows -.






- Remove installation frame with ashtray from center console.

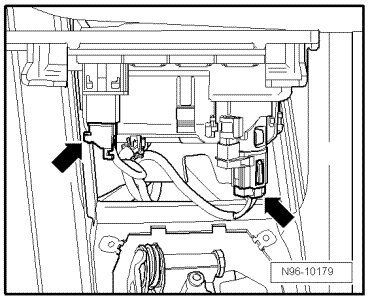

- Disconnect all connectors - arrows -, depending on the vehicle equipment level.

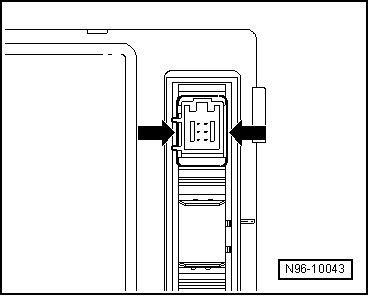

- Disengage the tabs - arrows - and remove switch upward from installation frame.






Installation

Installation is performed in the reverse order of removal.
