Rear Lid Tail Lamps

Rear Lid Tail Lamps

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

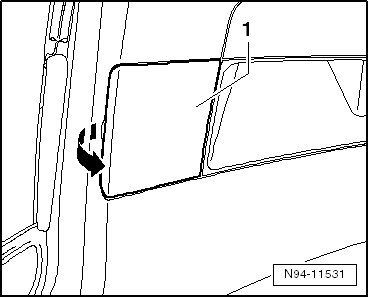

- Unclip cover - 1 - in direction of - arrow - from panel.

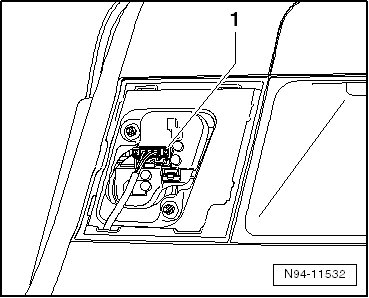

- Disconnect the connector - 1 -.

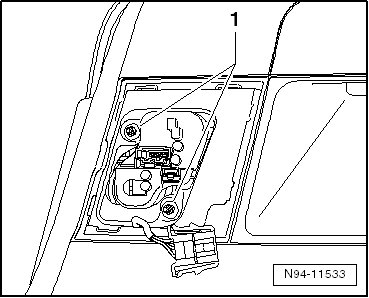

- Remove nuts - 1 -.

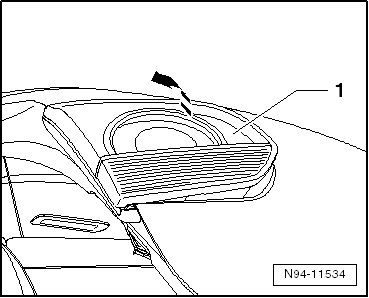

- Remove the tail lamp assembly from the body opening in the rear lid - 1 - in - direction of arrow -.






Installation

Install in reverse order of removal, noting the following:

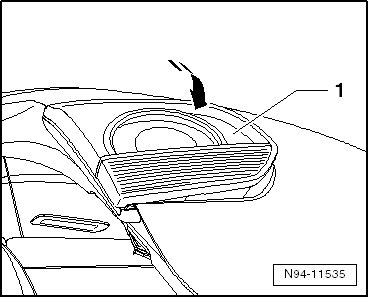

- Install the tail lamp assembly into the body opening inside the rear lid - 1 - in - direction of arrow -.






- Tighten the nuts to the tightening specification given in the assembly overview. Refer to=> [ Rear Lid Tail Lamps Overview ] Rear Lid Tail Lamps Overview.

- Connect the connector. It must audibly engage.

- Check the gap dimensions in the body and make sure the tail lamps work correctly.
