Door Handle and Door Lock Overview

Door Handle and Door Lock Overview

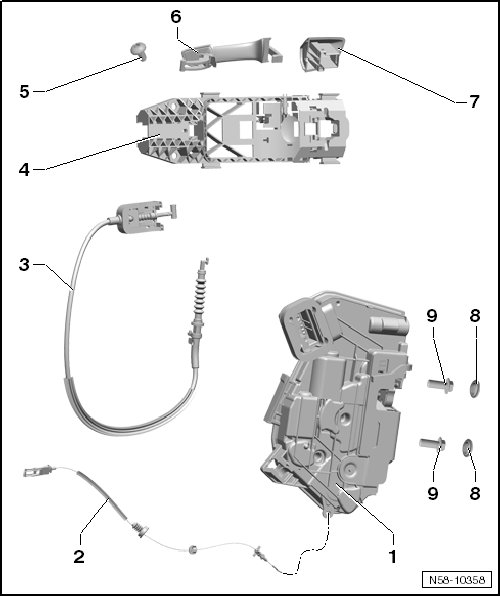

• The illustration shows a right door hinge. The left door hinge is identical.






1 Door Lock

• Removing and installing, refer to => [ Door Lock ] Rear Door Lock.

2 Cable

• For unlocking the lock by the interior door mechanism.

• With grommet as pass-through on subframe.

3 Cable

• From the door lock to the mounting bracket.

4 Mounting Bracket

• Removing and installing, refer to => [ Mounting Bracket ] Mounting Bracket.

5 Bolt

• Tightening specification: 4.5 Nm

• Mounting bracket is disengaged from door by loosening this bolt.

6 Door Handle

• Removing and installing, refer to => [ Door Handle ] Rear Door Handle.

7 Cover

• Removing and installing, refer to => [ Cover ] Cover.

8 Cover

9 Bolt

• Tightening specification: 20 Nm

• Quantity: 2
