Manual Transmission/Transaxle

Disassembly and Assembly

=> [ Transmission, without a Sealing Cap Lock Ring ] Transmission, Without a Sealing Cap Lock Ring

=> [ Transmission, with a Sealing Cap Lock Ring ] Transmission, With a Sealing Cap Lock Ring

=> [ Transmission Housing ] Transmission Housing

=> [ Clutch Housing ] Clutch Housing

=> [ Selector Forks ] Selector Forks

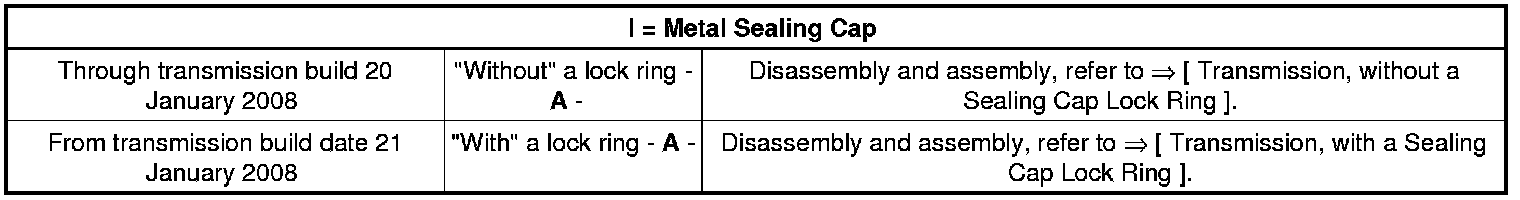

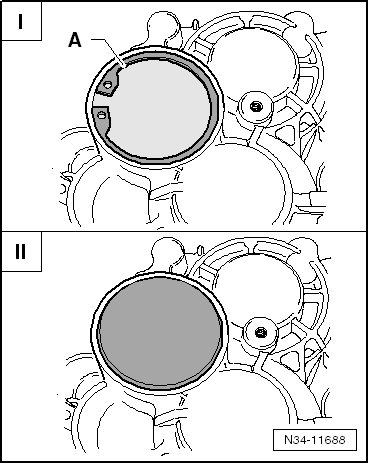

• Metal or plastic sealing caps are installed for the input shaft.

• The plastic sealing cap does not require the lock ring - A -.
